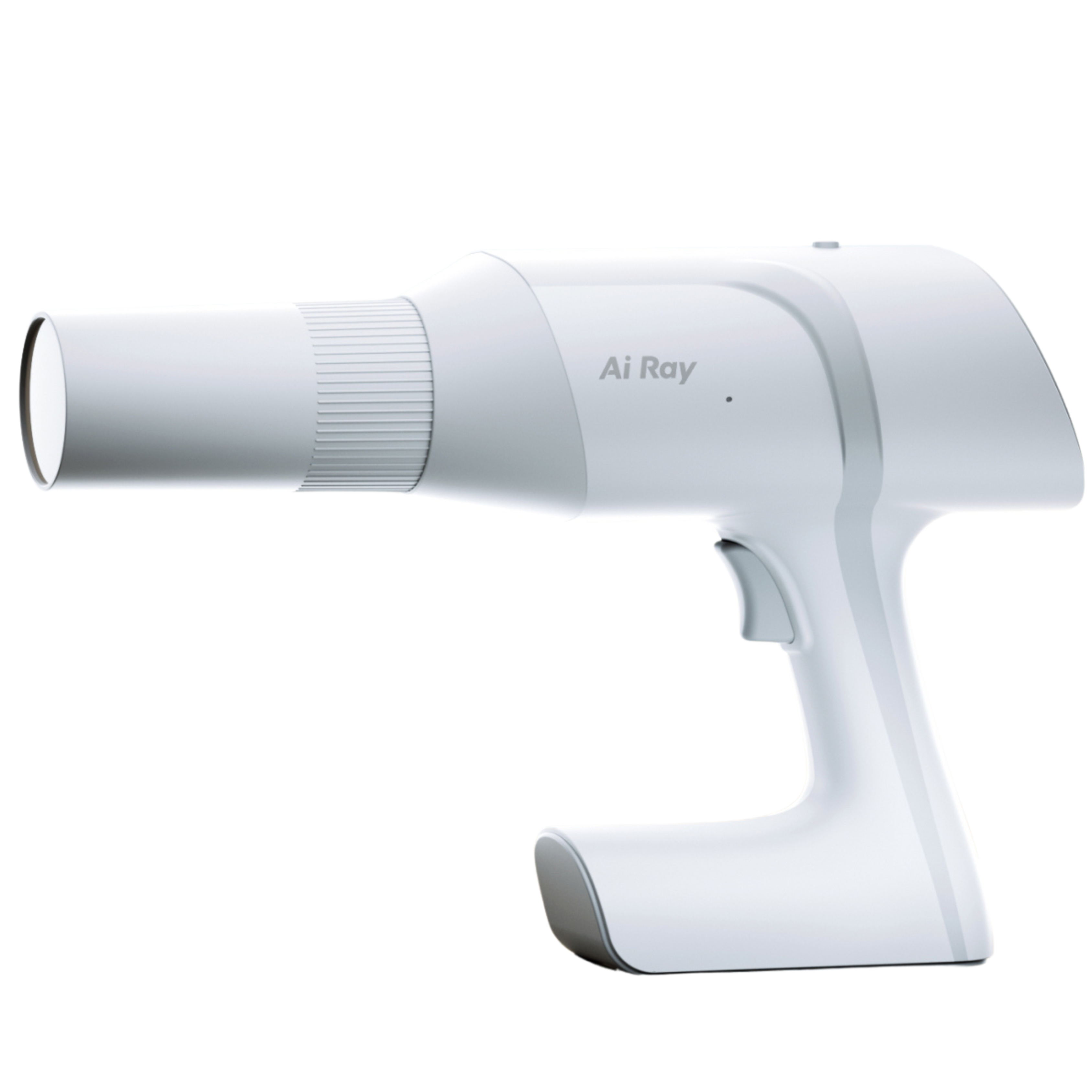

Woodpecker Ai- Ray Portable X-Ray
2 Year Genuine Woodpecker Technology Warranty
LEARN MORE

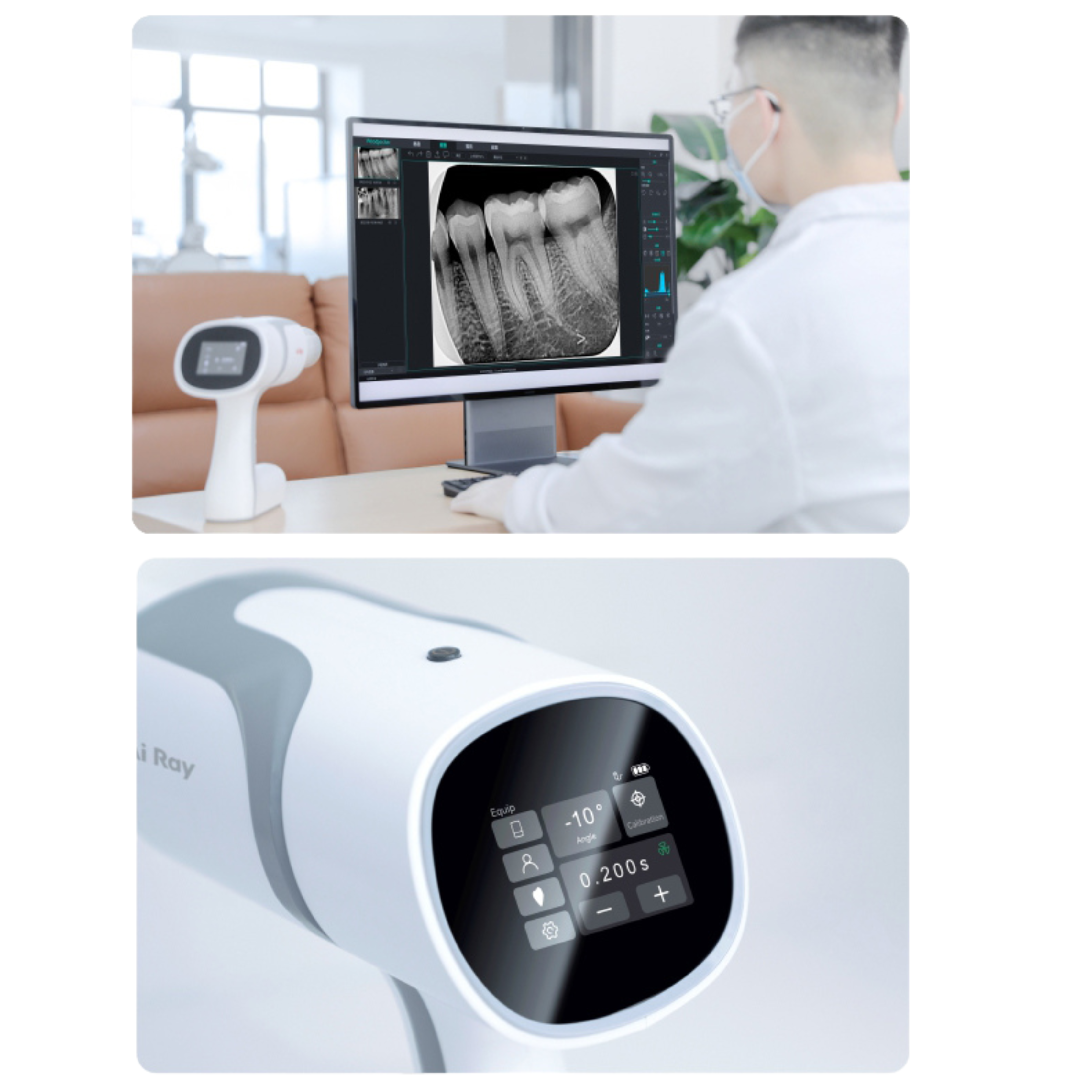

The Woodpecker Ai Ray Portable X-Ray Machine is a highly efficient and reliable dental imaging device that utilizes advanced technology to capture high-quality X-ray images of teeth. With its compact and portable design, it offers convenience and flexibility for dental professionals to perform X-ray procedures in various clinical settings.The Woodpecker Ai Ray Portable X-Ray Machine is designed with user-friendly features that simplify operation and enhance workflow efficiency. Its intuitive control panel and interface make it easy for dental professionals to navigate through settings, select appropriate exposure times, and capture images with precision.
This innovative X-ray machine employs X-ray radiation to penetrate dental structures, allowing for precise and detailed imaging of teeth, surrounding tissues, and bone structures. The resulting images provide crucial diagnostic information for dentists to assess oral health conditions, detect dental issues, and develop appropriate treatment plans.
Clinical Benefits :
- High efficiency for sharp radiography gives high-quality images.
- Non-invasive diagnostic imaging equipment takes care of the patient’s safety to radiation exposure.
- All X-rays are compatible with IOPA Film and RVG leading to the convenience of operations.
Feautures :
- Emission power up to 210W
- Shorter exposure time with high power
- Achieve stable, accurate and quick photography of different tooth positions

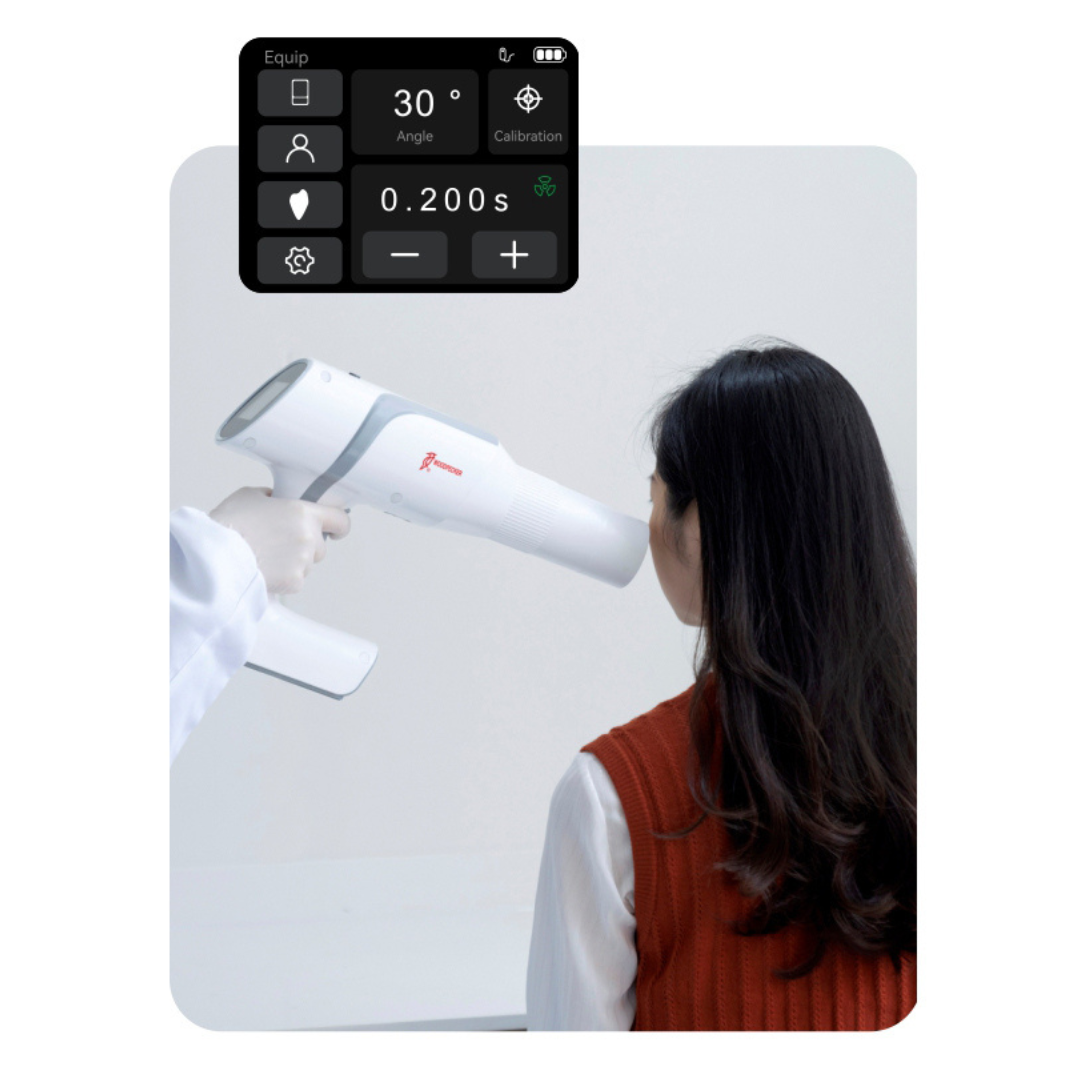

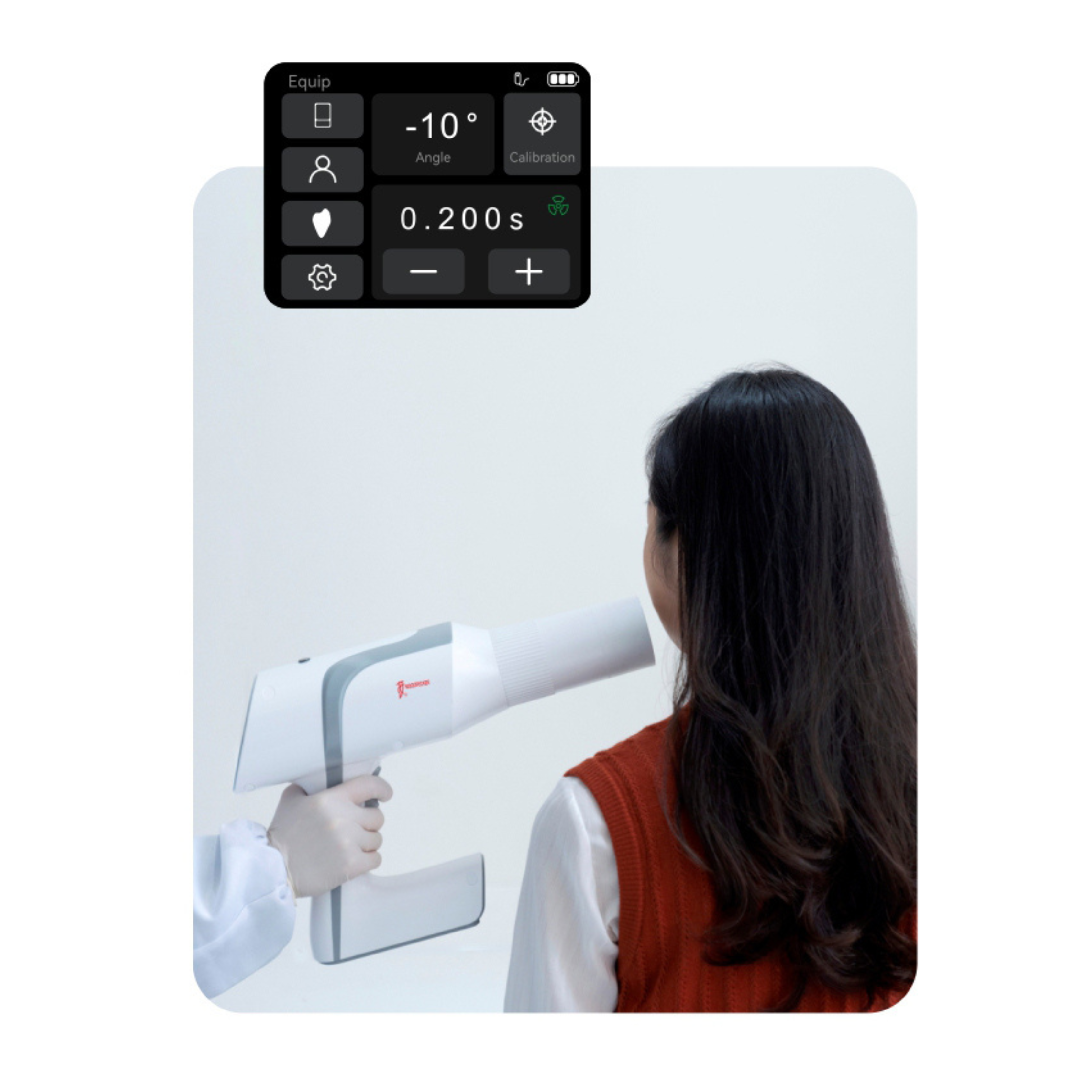

Various Photographic Methods - Easy to operate
- Built-in remote control receiving circuit and holder interface, can be connected to the wired remote controller and triangle holder.
- A varity of photographing methods available, ensuring safer photographing and easier operation.
- 0.4mm focus X-ray tube
- Provide high-quality and clearer image for various diagnostic needs
- 15000mAh high-capacity power lithium battery delivers a longer endurance.
- More than 1,500 dental films can be taken under a full charge.
- Takes 4hrs. to fully charge
- Constant DC high frequency and voltage current output
- Ensure that X-ray output is not affected by battery voltage fluctuations
- Unique internal design and lead shield
- Efficiently minimize the X-ray leakage
- Maximize the protection of operators from ionizing radiation

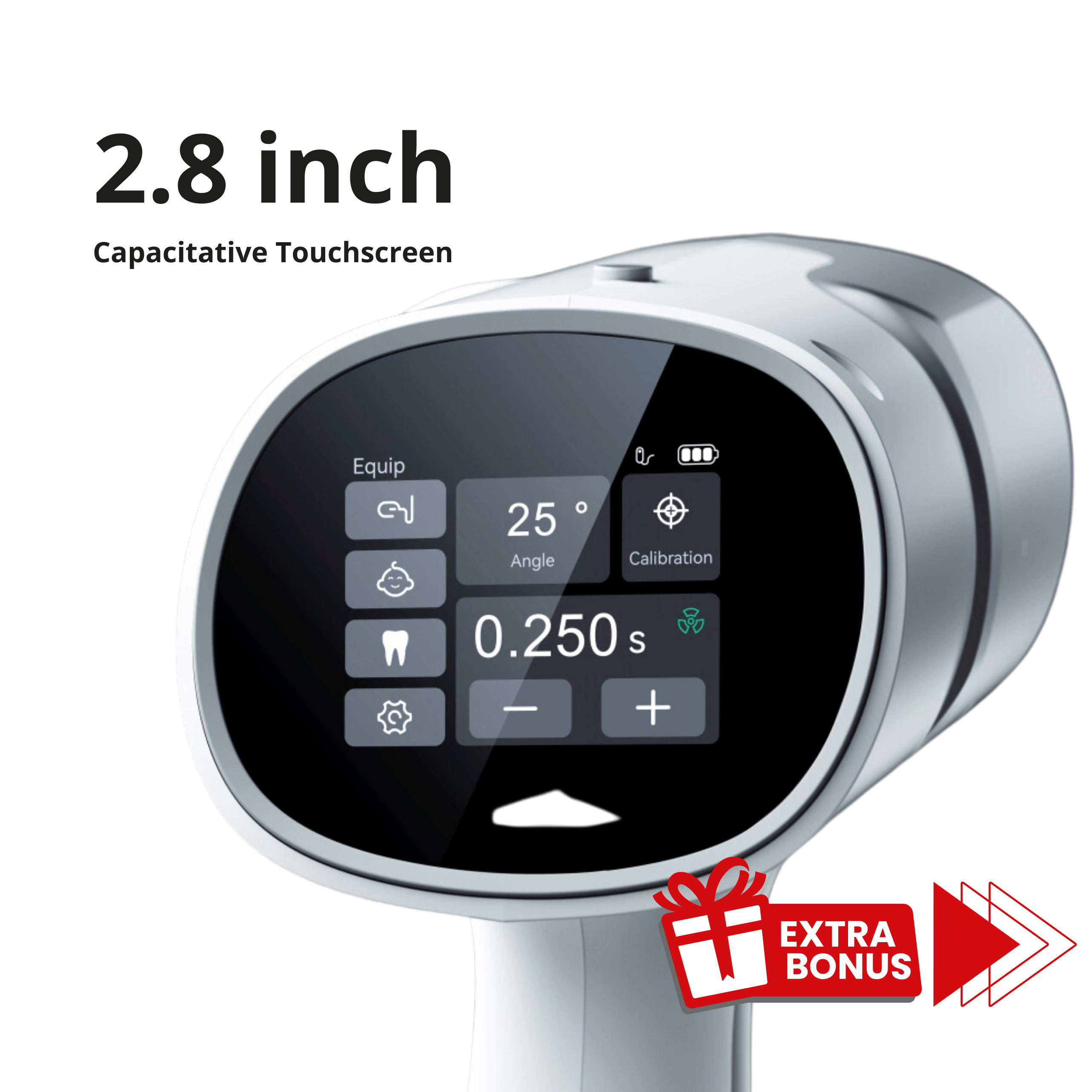

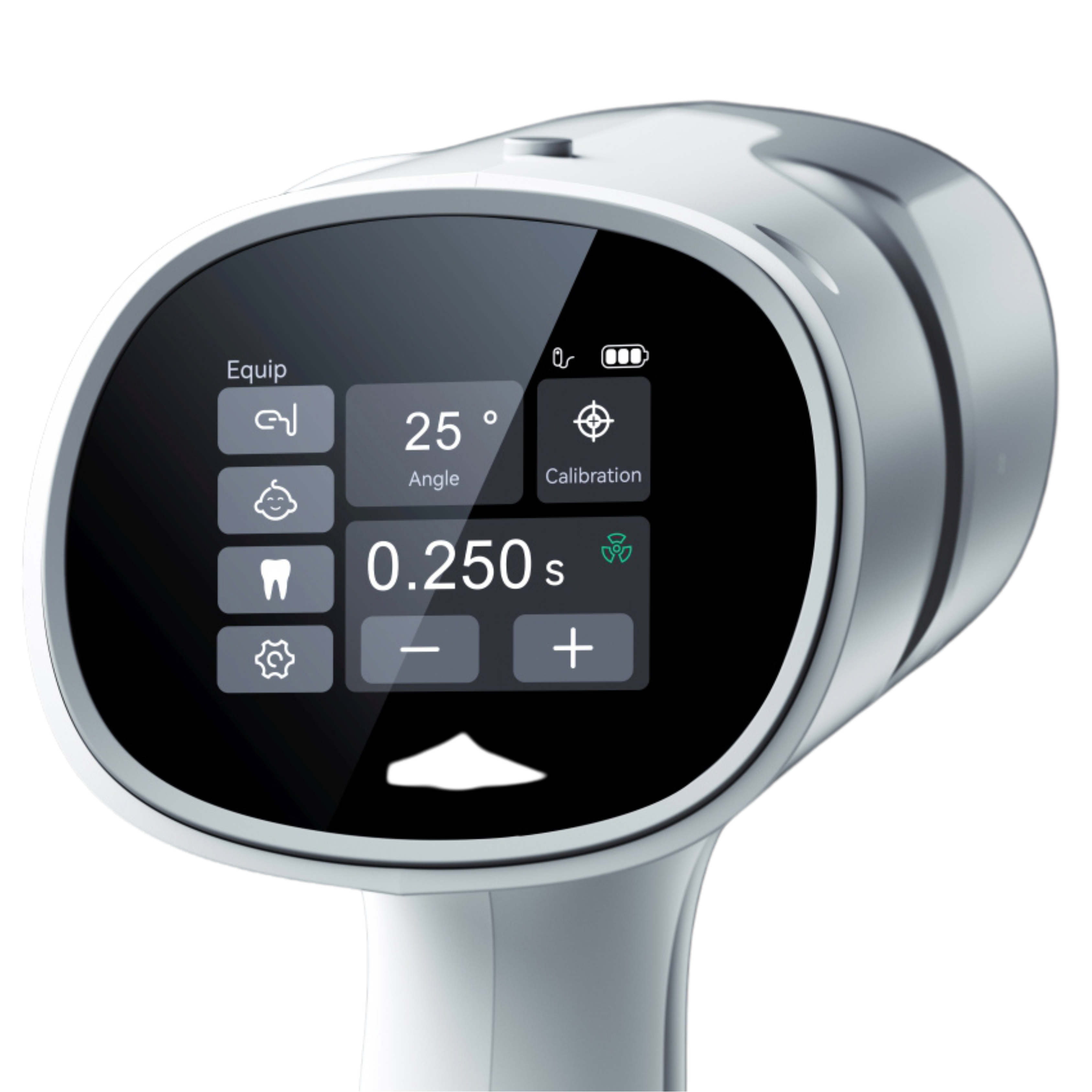

- 2.8 Inch capacitive touch screen
- Over 110 dental X rays can be taken after 5 mins. of charge
Key Specifications :
Power adapter input: 100-240V 50/60Hz 1.5A
Internal power supply: DC 10.8V
Types of radiation: X-ray
Electric power:
- Maximum power: 0.21kw（70kV, 3mA, 0.1s）
- Nominal electric power: 0.21kw（70kV, 3mA, 0.1s）
Tube voltage: tube voltage output is fixed at 70kV, error ±10%
Tube current: tube current output is fixed at 3mA, error ±20%
Loading time: the exposure loading time adjustment range is 0.02s～2s, the grade is adjustable, the grade is selected according to R'10 numerical system; with deviation ±(10%+1ms)
