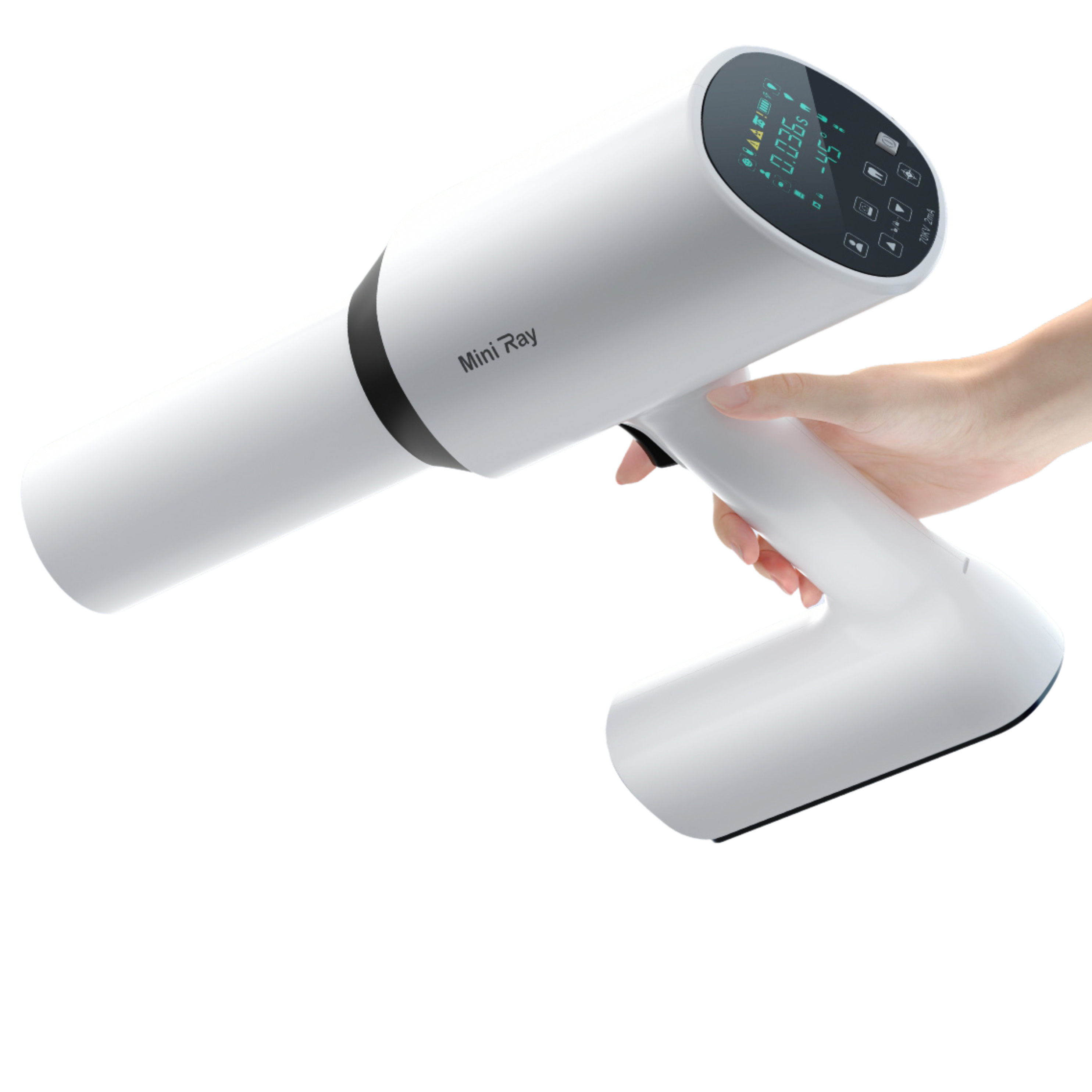

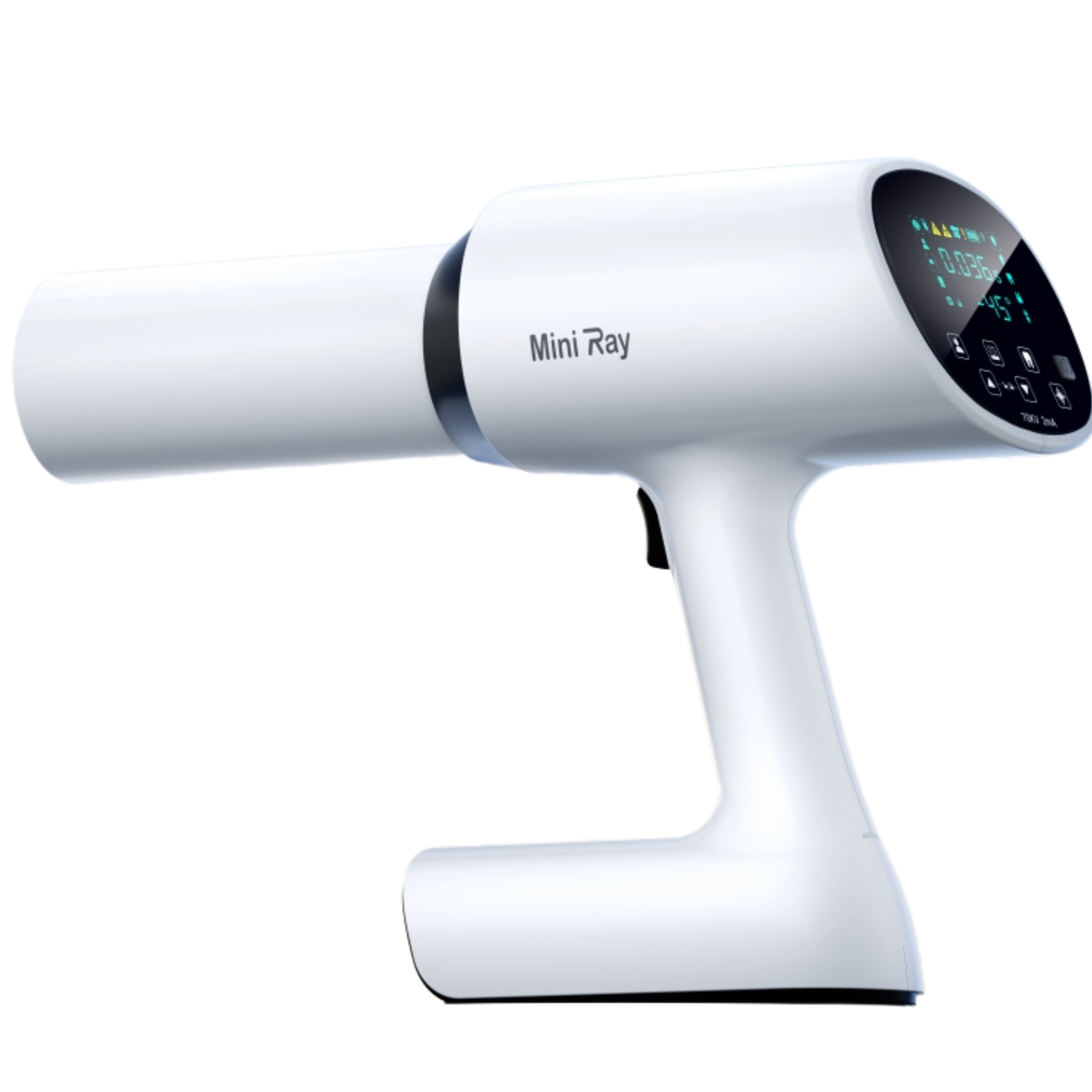

Woodpecker Mini-Ray Portable X-Ray

500+ Shots on a full charge

Features:

• Small size, light weight, portable.
• Memory function, just once exposure, can memory exposure parameters forever

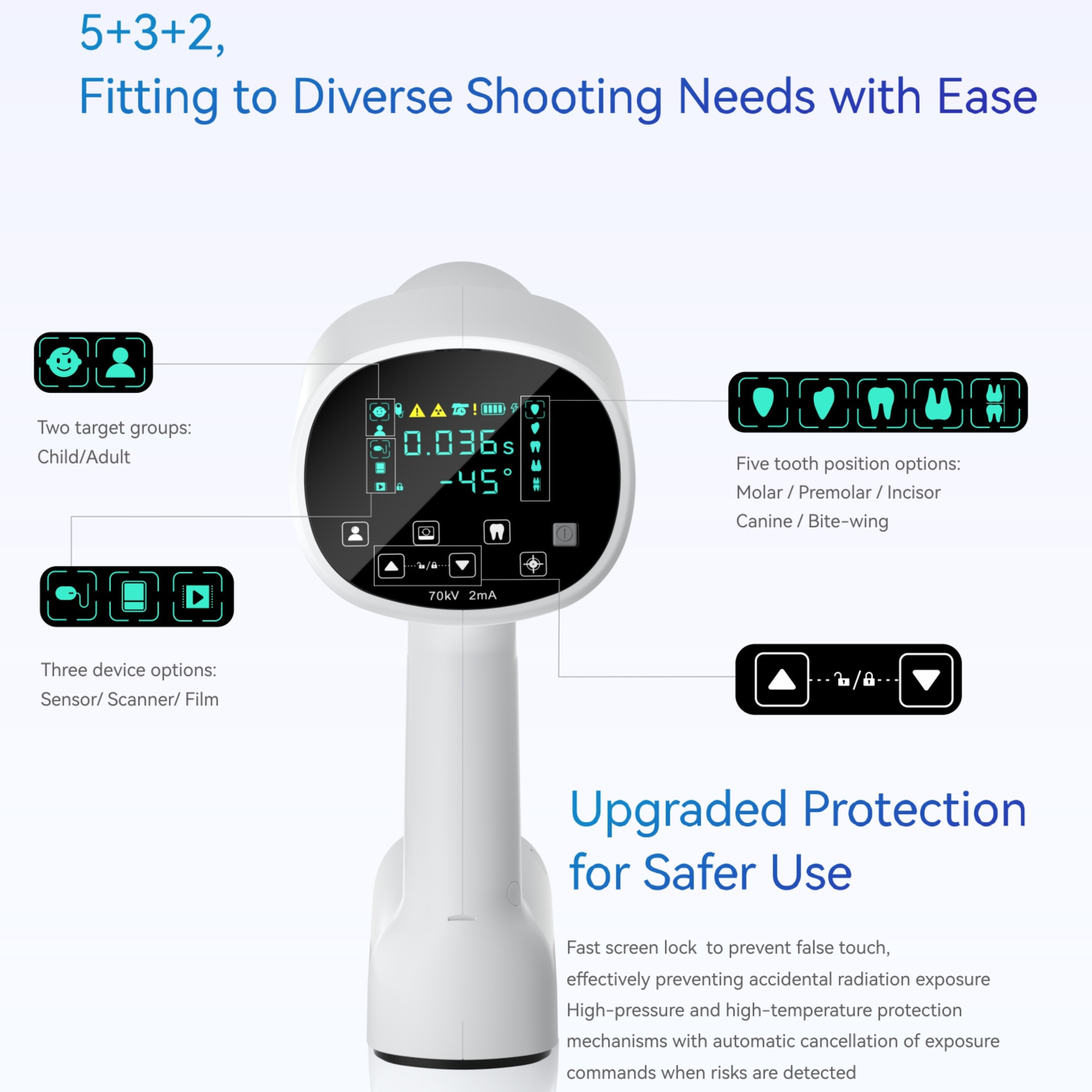

• LCD screen, all function could see clearly
• Tact switches, smart control, convenience operating
• High Frequency power supply, low radiation, handsome appearance
• Developing in light room, image in one minute, be used for diagnoses at once
• Be use of the intraoral cavity digital imaging system
• 2 Year Warranty

LEARN MORE

Specifications:
Tube voltage: 60KV
Tube current: 1.2mA
Focus size: 0.4mm
Frequency: 40KHZ
Exposure time: 0-2.5s
Charge voltage: AC100V-240V 50/60Hz
Battery: 14.8V 4400mAh
Leak radiation: Outside one meter≤0.002mGy/h
Focal spot to skin distance: 140mm
Net weight: 2.6kg
Package size: 280×270×250mm
Gross weight: 5.0kg


Technical parameters:
X-Ray Unit Input Power:16.8VAC, 2.0A
X-Ray Unit Output Power:80W
Li-ion Charger Input Power:100-220V, 50-60Hz
Li-ion battery Capacity Output Power:14.8VDC, 10A
Li-ion battery Capacity:7800mAh
Frequency:20KHz
Total Filtration:1.75mmAl
Exposure time:0.2-2s
Nominal Focal Spot Value:0.3mm
Tube:60KV/1mA (build in adjustable)
Package size:31x28x21cm
G.W.:4 kg;
